Specifications & Features:-
Interfaced to any PC with Windows operating system.
Connectivity : USB
Software Windows 7 / 8 / 10
Printing on any PC compatible Printer Colour or B&W.
Volume : 0-1000 ml measurement Flow rate : 0-50 ml/sec
Accuracy : +/- 2%

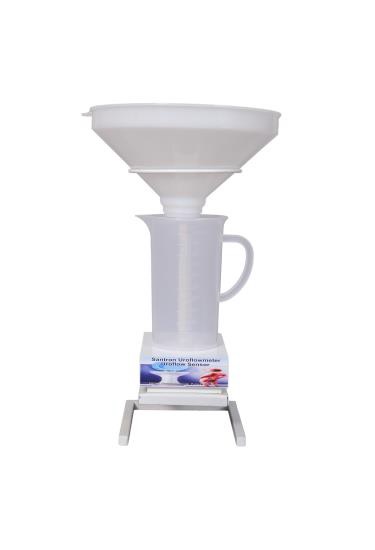

Sensor : Gravimetric (weight) type
Modes of measurement : Auto mode & Hesitancy Mode
Successive test can be taken without the need to, empty the jar after every test.
output report : Flow rate v/s time graph & Volume v/s Time graph
Output parameters : Voided Volume , Average Flow rate , Max. Flow rate ,
Computed Max. Flow rate ,Voided Time , Flow time , Max. Flow Time ,
Delay Time ( Hesitancy time ), Computed Average Flow rate , Interval Time.
Nomograms in output report : Average flow rate v/s Volume and Max. Flow rate V/s Volume
All test along with patient information is stored on the Hardisk and can be recalled whenever necessary
Color / B&w printouts on any PC compatible printer.
Sensor not connected " and " Jar Full " Display on the PC .
Fully Automatic with auto start & Stop .
Max. Measurement Duration : 180 seconds.
Long sensor cable that helps, patient to void in privacy so as to avoid psychosomatic side effect which might influence measurement results ( for Wired Model )
On screen Comparison of 2-3 graphs of patient’s Uroflowmeter reports
